TSA 325 NT GG * Automatic revolving door system for the realization of all-glass solutions
- Very quiet running, low-wear drive solution with a canopy height of at least 17 mm
- Drive and control technology are fully concealed in the floor
- Glass roof with reduced profiles provides additional transparency
- Reduced aluminium profiles with rounded edges create modern-looking optics
- Drum walls made of curved laminated safety glass (LSG)
- Door leaves made of fine-framed toughened safety glass (ESG)
- Two half shells made of heat-strengthened glass form the roof, which is held by stainless steel point fixings.
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure
Application Areas
- 3- and 4-leaf all-glass door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter ranging from 1800 to 3000 mm possible
Installation situations in reference objects and videos

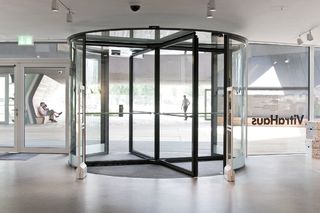

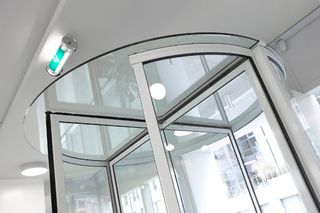

TSA 325 NT GG
Suitable for internal application and in the protected exterior area, with movable glass partition walls.Has a high quality architectural design claim and is combinable with all other element types. © Erwin Kamphuis / GEZE GmbH

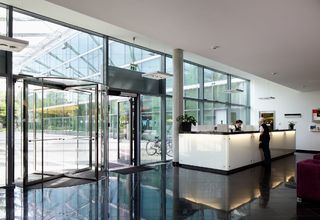

TSA 325 NT GG
Suitable for internal application and in the protected exterior area, with movable glass partition walls.Has a high quality architectural design claim and is combinable with all other element types. © Oliver Look / GEZE GmbH

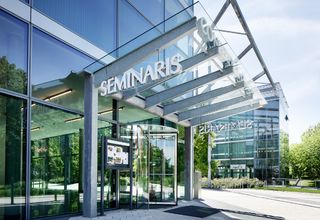

TSA 325 NT GG
Movable glass partitioning walls. Internal application and in the protected exterior area. Circumferential integrated profile to accommodate the functional units.Continuous glass surface - no profile visible.High-quality architectural design standard.Can be combined with all other element types. © Stefan Dauth / GEZE GmbH

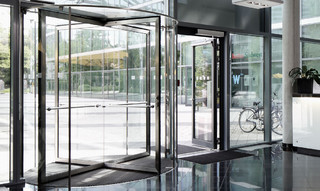

Revolving door system - TSA 325 GG + swing door drive - TSA 160 NT, FU Campus Dahlem
Three- and four-leaf all-glass door systems can be operated manually,Interior and exterior doors with high access frequency © Stefan Dauth / GEZE GmbH

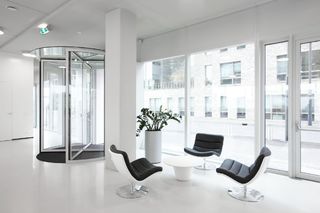

TSA 325 NT GG
Movable glass partitioning walls. Internal application and in the protected exterior area. Circumferential integrated profile to accommodate the functional units.Continuous glass surface - no profile visible.High-quality architectural design standard.Toughened safety glass 6 mm or 8 mm applicable glued on both sides with profile.Can be combined with all other element types. © Erwin Kamphuis / GEZE GmbH
Technical data
| TSA 325 NT GG | |
| Manual operation | Yes |
| With speed limiter (optional) | Yes |
| With positioning device (optional) | Yes |
| Fully automatic operation | Yes |
| Servo function | Yes |
| Suitability for escape and rescue routes | No |
| Break-out function (BO) | No |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3000 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 17 mm |
| Side elements version | 16 mm GG, Special glass on request |
| Version of roof structure | Glass roof |
| Illumination | not possible with glass roof |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Night-time closer layout | Outside |
| Night-time closer type | Manual |
| Night-time closer design | 10 mm LSG |
| Lock | Manual |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
| Underfloor operator | Yes |
| Disabled person's button | Yes |
| Standard conformity | DIN 18650, EN 16005 |
