Opening drives

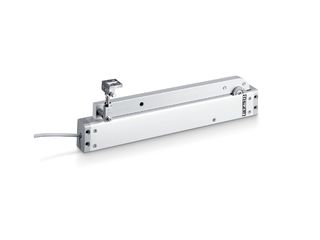

RWA K 600 F Retractable arm drive for installation on windows
- 90° window opening in less than 60 seconds
- Powerful drive with high torque
- Connection cable easy to replace by means of plug
- Integrated status contact for feedback signals
- Integrated Syncro module that can operate max. two drives without external control unit
- Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Retractable arm drive for installation on windows
Application Areas
- Smoke and heat extraction and natural ventilation (24 V)
- Inward opening windows with bottom-, top- and side-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation

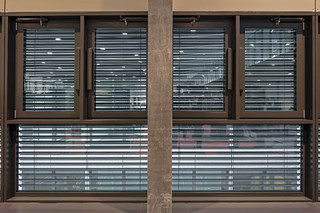

Installation situations in reference objects and videos
K600 CAT + locking drive Powerlock
© Lorenz Frey / GEZE GmbH
Technical data
| RWA K 600 F | |
| Dimensions | 421 x 40 x 86 mm |
| Housing material | Aluminum |
| Compressive force | 600 N |
| Tensile force | 600 N |
| Voltage at operation | 24 V ± 25 % |
| operating voltage | 24 V DC |
| Current consumption | 1.4 A |
| Residual ripple | 20 % |
| Duty rating | 30 % |
| Connection cable length | 5 m |
| Special length of power supply cable | 10 m |
| Min. core cross section | 0.5 mm² |
| Number of cables | 5 cores |
| Service temperature | -5 - 75 °C |
| IP rating | IP32 |
| protection rating | III |
| Synchronising function | Yes |
| Additional locking available | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Synchronising unit |
| End position cut-off extended | Internal path sensor |
| End position cut-off retracted | Internal path sensor |
| Overload cut-off | Yes |
| SHEV tested | Yes |
| Number synchronisation drive units | 2 |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
