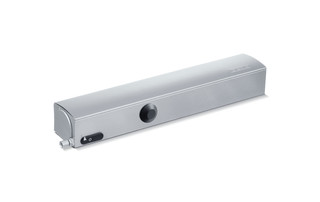

Closer body TS 4000 E-IS KM BG * Basic body for overhead door closer with link arm EN 1-6 with electric hold-open device and closing sequence control
- Closing force can be variably adjusted from the front
- Visual closing force display ensures correct setting
- Closing seed can be adjusted from the front via valve
- Latching action can be adjusted via link arm
- Integrated closing sequence control
- Electric hold-open device
- Door closer, can be used for right and left hand doors
- Supply voltage 24 V DC
- Same mounting hole pattern as all GEZE TS 4000 closers
- Flexible repositioning of the Bowden cable release mechanism in the frame, e.g. with passive leaf lockings
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Transom installation opposite hinge side
- Hold-open systems with integrated hold-open device
Technical data
Closer body TS 4000 E-IS KM BG | |
Closing force in accordance with EN 1154 | EN 1 - 6 |
Leaf width (max.) | 1400 mm |
Type of installation | Transom installation opposite hinge side |
Opening angle (max.) | 180 ° |
Identical design for DIN left and DIN right | Yes |
Input voltage | 24 V DC |
Electrical power consumption | 1 W |
Duty rating | 100 % |
Residual ripple | 20 % |
IP rating | IP43 |
Standard conformity | EN 1154:1996/A1:2002/AC:2006, EN 1155, EN 1158 |
Suitability for fire protection doors | Yes |
Length | 325 mm |
Width | 46 mm |
Height | 60 mm |
Closing force adjustable | Yes, stepless |
Adjustable closing speed | Yes |
Latching action adjustable | Yes, via link arm |
Back check integrated | No |
Position of closing force adjustment | Front |
Visual closing force display | Yes |
Safety valve againts overload | Yes |
Thermo-control valves | Yes |
Hold-open function | Electrical |
Hold-open device can be overridden | Yes |
Closing sequence control integrated | Yes |
