Programme switches

MPS * Mechanical programme switch for setting the mode of operation for automatic doors

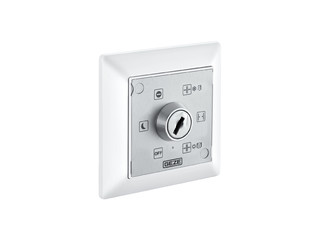

Mechanical programme switch MPS Programme switch for selecting the operating status of automatic doors
  • Available with rotary button or key
  • Six adjustable modes of operation
  • LED for error display
Contact us

Application Areas

  • For changing the modes of operation of GEZE automatic door systems

Technical data

MPS
Dimensions 80 x 80 x 12 mm
Current consumption 50 mA
IP rating IP40
Type of installation Flush-mounted installation
Connector cable length 100 m
Service temperature -15 - 50 °C

Variants & Accessories
