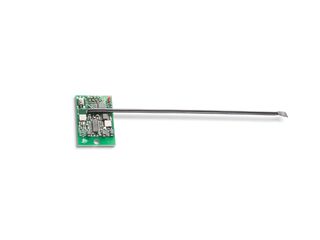

WRB-5 * Radio reception board for ECturn, ECturn Inside and Powerturn swing door drives
- Encrypted communication via rolling code with up to 74 trillion code combinations
- Custom and reliable teach-in to exclude unauthorised activation
- Channel 1 for standard activation, press and hold to switch from the current mode of operation to hold open and back
- Channel 2 for push button/hand held transmitter with the function “authorised activation”
Application Areas
- For insertion on the GEZE Powerturn, GEZE ECturn and GEZE ECturn Inside control unit
- Compatible with WTH remote control and WTM transmitting module
- Can be coupled with up to 12 WTH and/or WTM radio transmitters
Technical data
| WRB-5 | |
| Dimensions | 44 x 27 x 10 mm |
| Operating current | 7 mA |
| Type of installation | can be plugged in to DCU control units |
| Adjustability | with push of button |
| Transmission frequency | 433.93 Mhz |
| Service temperature | -15 - 50 °C |
| Humidity | 0-95 % relative, non-condensing |
Downloads
WRB-5
