TSA 395 Multi * Automatic double leaf revolving door system with integrated sliding door
- Variable use of the door system as revolving or sliding door
- Extensive additional equipment and surfaces
- Robust and proven drive technology
- Fast commissioning thanks to pre-cabled and configured sensors
- Certification in accordance with EN 16005 (pending)
Note: The product listed may not be available in your country. Please contact your GEZE contact person or send us an e-mail.
Application Areas
- Double leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Diameters from 3600 up to 5400 mm possible
Installation situations in reference objects and videos

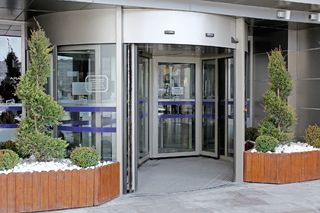

TSA 395 Multi
Automatic revolving doors offer a high degree of access convenience with high access frequency. Perfectly designed and elegant, they create the first impression in your building's foyer. With a variety of different modes of operation and settings, they can be used by everyone. © GEZE GmbH
Technical data
| TSA 395 Multi | |
| Fully automatic operation | Yes |
| Inner diameter (min.) | 3540 mm |
| Inner diameter (max.) | 5340 mm |
| Clear passage height | 2500 mm |
| Canopy height (min.) | 500 mm |
| Side elements version | 8 mm LSG |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant, according to customer wishes |
| Floor covering | Entrance mat, Entrance mat according to customer wishes |
| Hot-air curtain system | hot water air curtain, Electric air curtain, installed on top of the suspended ceiling construction |
| Floor ring | Yes |
| Disabled person's button | Yes |
