Locks and strike boxes

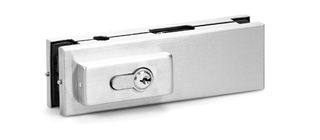

US 50 RD Glass Fitting centre patch lock with round bolt

GEZE Glass Fitting US 50 RD Lock (centre of the door) without lock cylinder with round bolts
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For full-glass doors
  • For glass thicknesses 10 and 12 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors

Technical data

US 50 RD
Dimensions 163 x 32 x 51 mm
Width 32 mm
Length 163 mm
Height 51 mm
Glass thickness (min.) 10 mm
Glass thickness (max.) 12 mm
Type of installation Glass installation

Variants & Accessories
