Locks and strike boxes

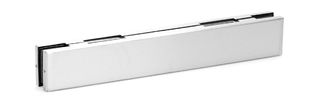

GK 20 * Glass Fitting fanlight strike box (double) for two lock fittings for corner lock
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For static toughened glass assemblies
- For glass thicknesses 10 and 12 mm
- For internal and external systems
Technical data
| GK 20 | |
| Dimensions | 163 x 32 x 51 mm |
| Width | 32 mm |
| Length | 163 mm |
| Height | 51 mm |
| Pane thickness (min.) | 10 mm |
| Pane thickness (max.) | 12 mm |
| Type of installation | Glass installation |
Downloads

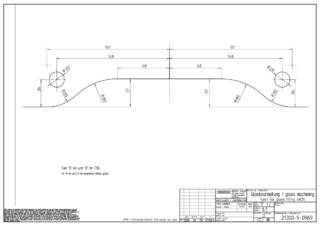

GEZE Glass Fitting GK 20
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
