TS 550 NV F

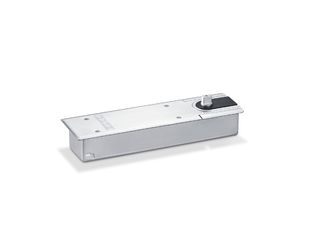

Closer body TS 550 NV F * Basic body for floor-mounted door closer EN 3-6 without hold-open function

Floor springs TS 550 NV F GEZE floor spring TS 500 NV F for fire and smoke protection doors corner bearing all-glass assemblies door leaf, with hydraulic latching action that accelerates the door just before reaching the closed position.
  • Closing force with variable adjustment
  • Closing speed can be adjusted from the top via valves
  • Latching action can be adjusted from the top via valves
  • Back check can be adjusted from the top via valves
  • Delayed closing can be adjusted from the top via valve
  • Door closer, can be used for right and left hand doors
Contact us

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • For leaf weights up to 300 kg

Technical data

Closer body TS 550 NV F
Suitability for fire protection doors Yes
Use on single-/double-action door Single-action door
Opening angle (max.) 180 °
Closing force in accordance with EN 1154 EN 3 - 6
Leaf width (max.) 1400 mm
Leaf weight (max.) 300 kg
DIN direction left / right
Standard conformity EN 1154:1996/A1:2002/AC:2006
Length 342 mm
Width 82 mm
Height 54 mm
Length adjustment range for cement box 9 mm
Width adjustment range for cement box 10 mm
Height adjustment range for cement box 6 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Back check integrated Mechanically fixed
Delayed closing integrated Yes
Position of closing force adjustment Top
Safety valve againts overload Yes
Thermo-control valves Yes
Closing effect from 180 °
